AmpleSun Solar high efficiency solar cells

  • 10 - 999 Watts
    $0.90
  • >=1000 Watts
    $0.75
Max. Power:
100w
Number of Cells:
119
Material:
Amorphous Silicon
Lead Time:
Quantity(Watts) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Watts)
Customized packaging (Min. Order: 1 Watts)

More

Graphic customization (Min. Order: 1 Watts) Less
Samples:
$1.00 /Watt | 1 Watt (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AmpleSun
Model Number:
AS-100W
Color:
Dark brown
solar panel:
Amorphous Solar Panel
Warranty:
25 years
Max. Power:
110W
Certificate:
TUV/IEC61646/CE/ISO
Frame:
Anodized Aluminium Alloy or frameless
Junction Box:
IP67 Rated
Backing Color:
White Black Transparent
Glass:
3.2mm Tempered Low Iron
Connector:
MC3 or MC4
Type:
Standard Solar Panel
Size:
1.4m*1.1m
Supply Ability
Supply Ability:
25 Milliwatt/Milliwatts per Year
Packaging & Delivery
Packaging Details
Size: 1114*1414*35mm
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Q'ty/20': 448pcs (44.8kw)
Q'ty/40': 960pcs (96kw)
Loading port: Shanghai/ Ningbo
Port
Shanghai/ Ningbo/ Yiwu
Lead Time :
Quantity(Watts) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated

Amorphous silicon thin film solar panel, with TUV/ UL/ CE/ RoHS/ IEC/ CQC/ ISO/ SFEC/ CEC approval.AmpleSun AS solar cell series have been widely used as building roof, curtain-wall, envelop, carport ,window and canopy.



General advantages:

1. Good environment adaptability, less sensitive to installation angle, more suitable for vertical installation in BIPV.

2. Excellent performance.

3.Good weak light performance.

4.Low temperature coefficient.

5.Good looking, well match the buildings or as a constituent part.

6.Highly customized, any voltage you need is available.

7. Free from defects for 5 year with regular use, maintain more than 90% of Max. power for 10 years and 80% for 25 years.



Product Parameters

Standard size solar cell

Test under STC(1000W/m2,AM1.5, 25℃)

ModelASF110ASG110
solar panel typea-Sia-Si
Pmax,W110110
Voc.V100100
Isc,A1.791.79
Vpm,V7878
Ipm,A1.411.41
framesingle glass Al-framedouble glass frameless
Encapsulation MaterialEVAPVB
Dimension(L*W*T), mm1406*1106*251400*1100*6.8
Weight,kg17.625.3

Remark:Different size, voltage, current.color, transparency can be customized



Temperature Coefficents:

Maximum Power[W]:        -0.20%/℃

Maximum Power Voltage[V]:  -0.32%/℃

Maximum Power Current[A]:  +0.14%/℃

Open Circuit Voltage[V]:     -0.33%/℃

Short Circuit Current[A]:     +0.09%/℃

BIPV Product Details
.jpgGreen 800 800
800 800 transparent-2.jpgIMG_20190521_140317.jpg



Packaging & Shipping

Package: Carton
Q'ty/20': 448pcs(48KWp);
Q'ty/40': 960pcs(96KWp)
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Loading port: Shanghai

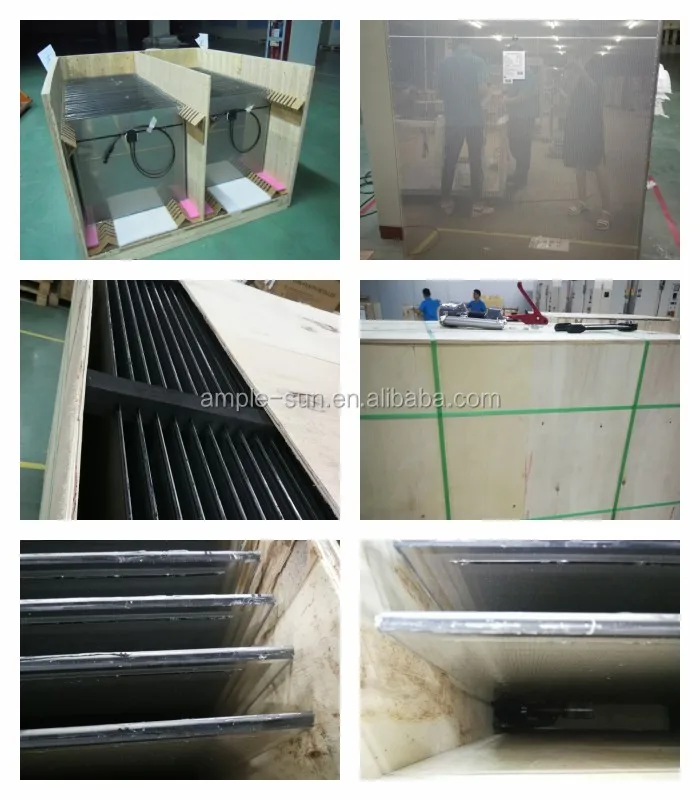

BIPV packing







Projects Cases

BIPV project cases.jg
