Mini amorphous solar panel price cheap with 6V 12V 24V 1W 2W 3W 4W 5W

  • 100 - 999 Pieces
    $3.00
  • 1000 - 9999 Pieces
    $2.00
  • >=10000 Pieces
    $0.30
Material:
Amorphous Silicon
Max. Power:
customized
Number of Cells:
customized
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$2.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Amplesun
Model Number:
ASC
Size:
customized, customized
Power:
according to the voltage and voltage
Current:
customized
Voltage:
customized
Meterial:
amorphous silicon
Wires:
customized
Brand:
Amplesun
Model:
ASC
Cells:
customized
Voc:
customized
Type:
Customized Solar Panel
Supply Ability
Supply Ability:
25 Milliwatt/Milliwatts per Year
Packaging & Delivery
Packaging Details
customized
Port
Shanghai/ Ningbo
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated



Mini amorphous solar panel price cheap with 6V 12V 24V 1W 2W 3W 4W 5W

General Description

1) Solar Panel Type: amorphous silicon

2) Susbtrate: 3.2mm float glass

3) Backsheet: PET

4)Solder: lead free

5)Cable: as customer required.

6)Shape: rectangle, triangle, trapezoid, round and so on.

7)Size:25*25mm to 1400*1100mm

8)Voltage: customized



Product Description

 1).Use the environmental friendly materials,avoiding any risk to the people and environment in the whole life of our products.

2). Advanced encapsulation process ensures a high resistance against UV, temperature and weather.



3).Good Weak light performance.

4).Low temperature Coefficients

5).Pretty appearance, well matching the appliances.

Product Parameters

size can be customized, the electrical data of mini photovoltaic panel is as follows:

 Test condition: 1000W/m2, AM1.5,25℃



ModelSize,mm
L×W
Pmax
mW
Voc
V
Isc
mA
Vmp
V
Imp
mA
ASC02502525×2530.3 2.5 21.4 1.8 16.9
ASC03003030×3046.5 2.5 32.9 1.8 26.0
ASC04004040×4089.4 3.4 47.4 2.4 37.5
ASC04504545×45116.1 3.4 61.5 2.4 48.6
ASC05005050×50146.2 3.4 77.5 2.4 61.2
ASC05502055×2061.1 3.4 32.4 2.4 25.6
ASC06006060×60216.8 6.7 57.5 4.8 45.4
ASC06103061×30106.6 3.4 56.5 2.4 44.7
ASC07206072×60265.0 6.7 70.2 4.8 55.5
ASC07504575×45205.4 6.7 54.4 4.8 43.0
ASC08108181×81410.2 6.7 108.7 4.8 85.9
ASC09007090×70395.4 9.2 76.2 6.6 60.2
ASC09808998×89554.1 7.6 130.6 5.4 103.2
ASC100050100×50312.4 6.7 82.8 4.8 65.4
ASC117071117×71530.2 7.6 124.9 5.4 98.7
ASC120035120×35260.4 8.4 55.2 6.0 43.6
ASC125080125×80642.6 8.4 136.3 6.0 107.7
ASC130049120×35260.4 12.6 36.8 9.0 29.1
ASC133165133×165123.1 12.6 17.4 9.0 13.7
ASC138118138×11882.2 13.4 10.9 9.5 8.6
ASC150038150×38358.9 12.6 50.7 9.0 40.1
ASC165133165×133121.1 13.4 16.0 9.5 12.7
ASC176196176×196200.1 14.3 25.0 10.1 19.7
ASC180028180×28313.2 11.7 47.4 8.4 37.5
ASC250114250×114152.0 21.8 12.4 15.5 9.8
ASC293081293×811569.7 21.8 128.0 15.5 101.2
ASC420042420×421146.4 23.5 86.8 16.7 68.6
ASC540053540×531885.4 25.2 133.3 17.9 105.3
ASC580065580×652503.5 25.2 177.0 17.9 139.8
ASC10800651080×654684.2 25.2 331.1 17.9 261.6

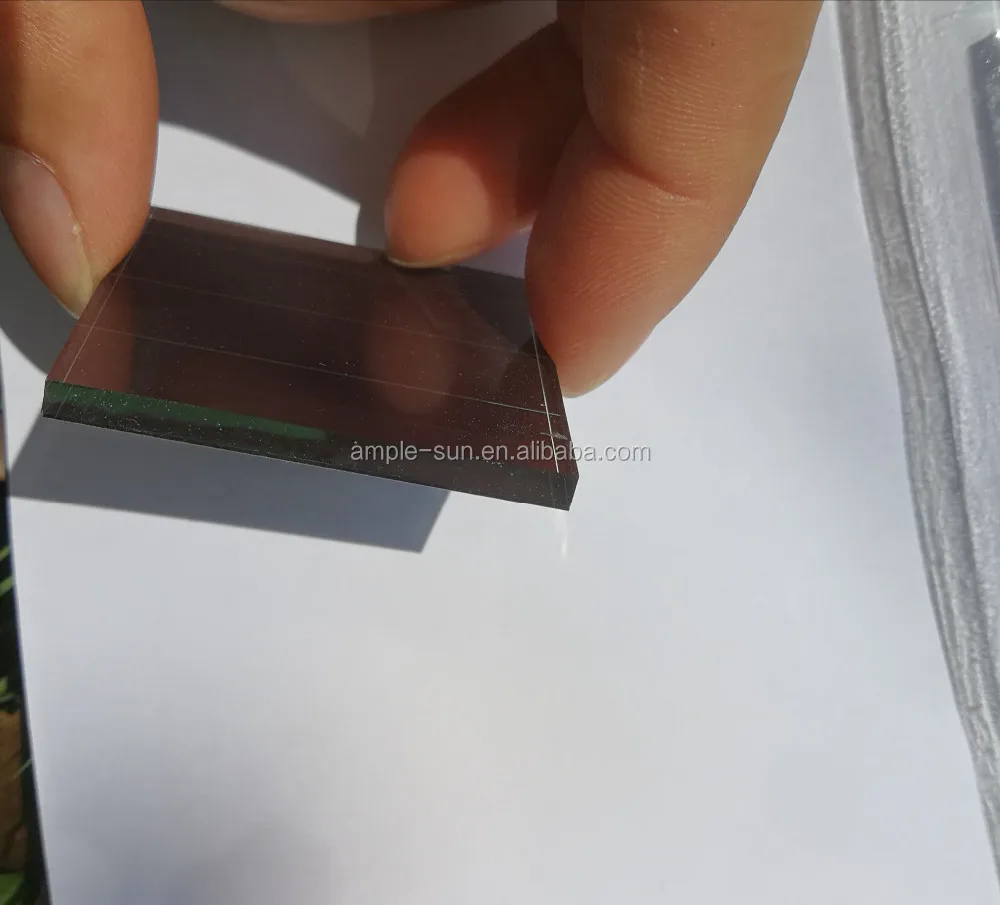

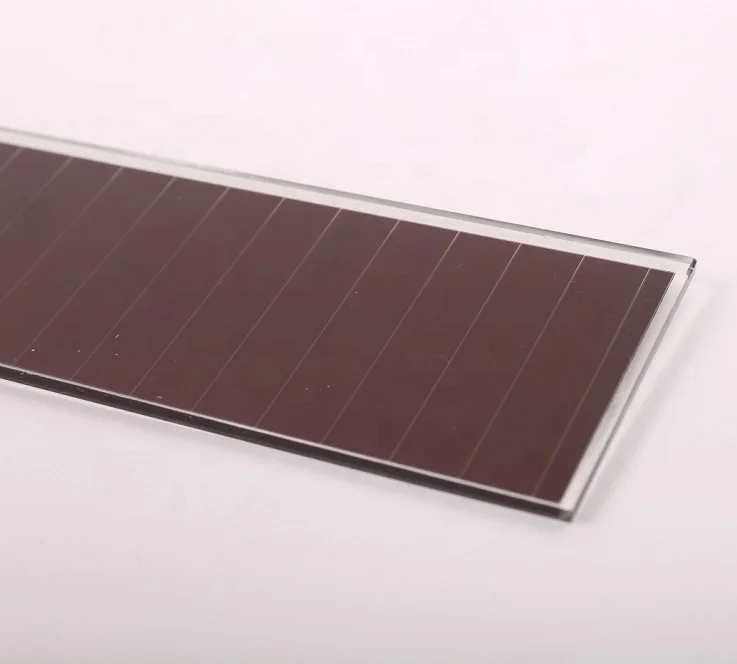

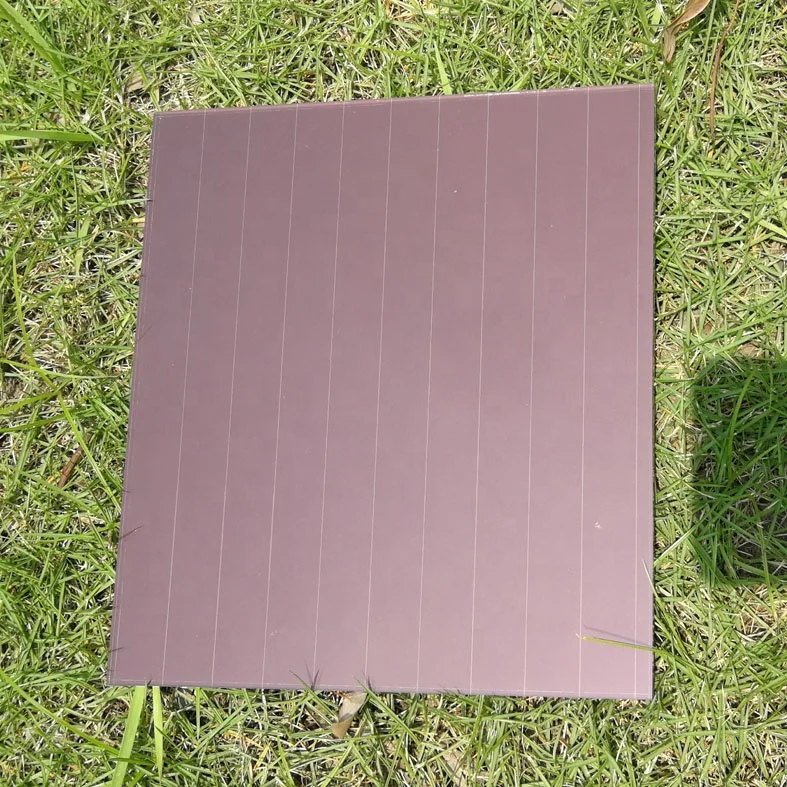

Product Details

176196.jpgHTB1K.xCKVXXXXb3XVXXq6xXFXXXR.jpgIMG_20190606_192701



Facilities

 1facilities,jpg
