Not invisible sun see through solar panels

  • 1 - 99 Wp
    $1.30
  • >=100 Wp
    $0.50
Material:
Amorphous Silicon
Max. Power:
110
Number of Cells:
120
Lead Time:
Quantity(Wp) 1 - 100 >100
Est. Time(days) 14 Negotiable
Customization:
Customized logo (Min. Order: 1 Wp)
Customized packaging (Min. Order: 1 Wp)

More

Graphic customization (Min. Order: 1 Wp) Less
Samples:
$3.00 /Wp | 1 Wp (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
china
Brand Name:
Amplesun
Model Number:
ASG100
Size:
1400*1100*6.8mm, 1400*1100mm
Material:
Amorphous Silicon
Number of Cells:
119
Open circult voltage:
101V
Short circult current:
1.65A
Weight:
25.3KG
Connector:
MC3 or MC4
transparency:
10% to 60%
color:
blue, red, yellow, green
application:
BIPV
Type:
Double Glass Solar Panel
Supply Ability
Supply Ability:
25 Milliwatt/Milliwatts per Year
Packaging & Delivery
Packaging Details
Carton Q'ty/20': 448pcs(44.8KWp);
Q'ty/40': 960pcs(96KWp)
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Port
Shanghai/Ningbo
Lead Time :
Quantity(Wp) 1 - 100 >100
Est. Time(days) 14 To be negotiated



1. Certification:

 All products are strictly designed and manufactured according to IEC 61646, 61730 and UL 1703 standard in ISO 9001 certified factory, with TUV/ UL/ CE/ ROHS/ IEC/ CQC/ ISO/ SFEC/ CEC approval



2. Materials:

 Use environmental friendly materials; avoid any risk in the whole life of our products.

1) TCO glass: Choose the best from NSG.

2) transparency:10%-60%.

3). Color: red, blue, yellow, green.

4) PVB: high strength after broken or equivalents

5) Connector: MC3 or MC4 equivalent



3. Technical advantages:

1) Advanced encapsulation process: amorphous silicon deposited by PECVD technology ensures a high resistance against UV, temperature and weather.

2) Excellent performance under weak light and high temperatures condition. Less sensitive to shading

3)Less hotspot effect.

4) Good environment adaptability, less sensitive to installation angle, more suitable for vertical installation in BIPV

5) Enable coverage with fewer units, and less balance of system cost

6) Good looking, well match the buildings and facilities.

7). Low temperature coefficient, endure less power loss during hot summer.





BIPV Product Details



4.Electrical Data

ModelASF110ASG110
solar panel typea-Sia-Si
Pmax,W110110
Voc.V100100
Isc,A1.791.79
Vpm,V7878
Ipm,A1.411.41
framesingle glass Al-framedouble glass frameless
Encapsulation MaterialEVAPVB
Size, mm1406x1106x251400x1100x6.8
Weight, kg17.625.5

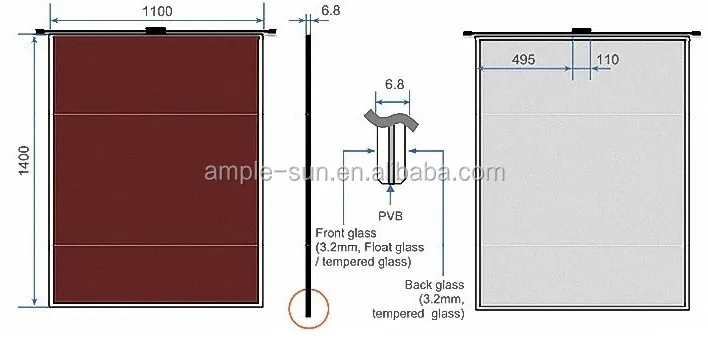

Double glass transparent solar panel

ModelASG110ASG100ASG090ASG078ASG067ASG053ASG042
Transparency0%10%20%30%40%50%60%
Pmax,W1101009078675342
Voc.V100100100100999999
Isc,A1.791.61 1.43 1.25 1.07 0.90 0.71
Vpm,V78777777777575
Ipm,A1.411.27 1.13 0.99 0.87 0.71 0.56
ColorRed,blue, yellow, green,Black,grey and intrinsic





Warranty

Guaranteed free from defects:

Free from defects in materials and workmanship for 5 years.



Guaranteed to maintain power:

Maintain more than 90% of maximum power for 10 years.

Maintain more than 80% of maximum power for 25 years.

Projects Cases

 AmpleSun solar products can be widely applied to ground mounted Solar power plants, commercial roof systems, residential roofs, BIPV buildings etc.
