100W BIPV thin film amorphous silicon red solar panel

  • 10 - 999 Wp
    $1.00
  • >=1000 Wp
    $0.85
Material:
Amorphous Silicon
Max. Power:
100W
Number of Cells:
119
Lead Time:
Quantity(Wp) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Wp)
Customized packaging (Min. Order: 1 Wp)

More

Graphic customization (Min. Order: 1 Wp) Less
Samples:
$3.00 /Wp | 1 Wp (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
AmpleSun
Model Number:
ASF100
Size:
1414*1114mm
CERTIFICATION:
TUC, CE, CEC, FSEC, ISO, ROHS, UL, PV CYCYLE, etc.
Solar panel:
amorphous silicon
frame:
Al frame or frameless
colour:
wine red
Maximum power voltage:
77V
Open circult voltage:
99V
Short circult current:
1.65A
weight:
20.3KGS
Maxium power:
-0.2%/℃
back sheet:
TPT or temper glass
Type:
Standard Solar Panel
Supply Ability
Supply Ability:
25 Milliwatt/Milliwatts per Year
Packaging & Delivery
Packaging Details
Package: Carton
Q'ty/20': 448pcs(48KWp);
Q'ty/40': 960pcs(96KWp)
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Loading port: Shanghai
Port
Shanghai/Ningbo/Yiwu
Lead Time :
Quantity(Wp) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 7 15 To be negotiated
100W BIPV thin film amorphous silicon red solar panel
PV modules with built-in insulation layer, PV-thermal-in-one module, sealed hollow insulating modules,large-area modules( a lot bigger than standard 1.54m2 module) are all valiable for the same purpose-BIPV. Amplesun clients can order their PV module products with the transparency,size,shape,background color, and even background patterns specified by clients themselves.



Products Features:

1). Environmental friendly: No harmness to the people and environment in the whole life of our products.

2). Best glass:Choose the best TCO glass,from NSG.

3). Weather resistance: Advanced encapsulation process ensures a high resistance against UV, temperature and weather.

4). Large size: Size of AmpleSun Solar modules, at 1.57 Sq.M., means you have get ur coverage with fewer units, and less balancd of system cost.

5).Less hotspot effect.

6).Rigid Strength: Anodized aluminium frames resist high wind and snow loads, together with preinstalled cables ensuring a quick and easy installation.



Electrical Data:

ModelASF110ASG110
solar panel typea-Sia-Si
Pmax,W110110
Voc.V100100
Isc,A1.791.79
Vpm,V7878
Ipm,A1.411.41
framesingle glass Al-framedouble glass frameless
Encapsulation MaterialEVAPVB
Dimension(L*W*T), mm1406*1106*251400*1100*6.8
Weight,kg17.625.3



Temperature Coefficents:

Maximum Power[W]:        -0.20%/℃

Maximum Power Voltage[V]:  -0.32%/℃

Maximum Power Current[A]:  +0.14%/℃

Open Circuit Voltage[V]:     -0.33%/℃

Short Circuit Current[A]:     +0.09%/℃



Installation Parameters:

Maximum System Voltage[V]:    1000

Operation Module Temperature:  -40 to +85℃

Maximum Load:               2400N/m2

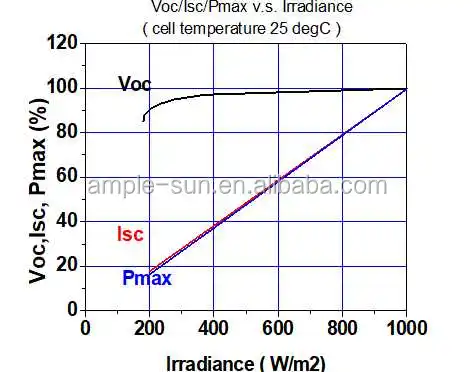

I-V curve irradiance.jpg

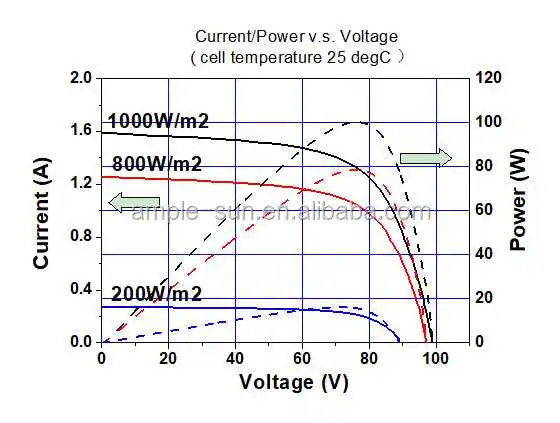

I-V curve.jpg



Quality Warranty:

Guaranteed free from defects:

Free from defects in materials and workmanship for 5 years.

Guaranteed to maintain power:

Maintain more than 90% of maximum power for 10 years.

Maintain more than 80% of maximum power for 25 years.



Product Details

red sample 800 800.jpg
