Thin Film Low Price Solar Panel Precio De Paneles Solares

  • 100 - 999 Wp
    $1.00
  • >=1000 Wp
    $0.80
Material:
Amorphous Silicon
Max. Power:
110W
Number of Cells:
119
Lead Time:
Quantity(Wp) 1 - 100 >100
Est. Time(days) 14 Negotiable
Customization:
Customized logo (Min. Order: 1 Wp)
Customized packaging (Min. Order: 1 Wp)

More

Graphic customization (Min. Order: 1 Wp) Less
Samples:
$3.00 /Wp | 1 Wp (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Amplesun
Model Number:
ASG110
Size:
1400mm*1100mm, 1400*1100mm
Product name:
100W low price solar photovoltaic panel
Number of Cells:
119
Open circult voltage:
101V
Short circult current:
1.65A
Weight:
25.3KG
Connector:
MC3 or MC4
transparency:
10% to 60%
color:
blue, red, yellow, green
application:
BIPV
Type:
Double Glass Solar Panel
Supply Ability
Supply Ability:
25 Milliwatt/Milliwatts per Year
Packaging & Delivery
Packaging Details
Carton Q'ty/20': 448pcs(44.8KWp);
Q'ty/40': 960pcs(96KWp)
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Port
Shanghai/Ningbo
Lead Time :
Quantity(Wp) 1 - 100 >100
Est. Time(days) 14 To be negotiated



AmpleSun Solar products include framed, frameless and see through thin film amorphous silicon solar module.AmpleSun solar offers top quality thin film solar panels with competitive price, guaranteeing a highest performance and cost efficient.



amorphous silicon solar panel can be widely applied to ground mounted Solar power plants, commercial roof systems, residential roofs, BIPV buildings etc.

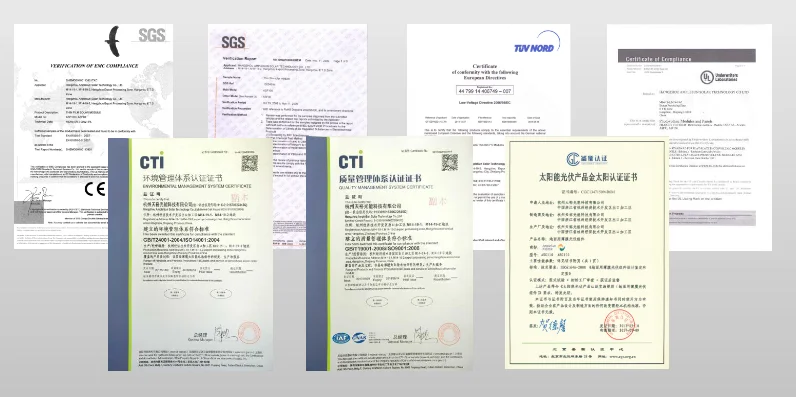

1. Certification:

 All products are strictly designed and manufactured according to IEC 61646, 61730 and UL 1703 standard in ISO 9001 certified factory, with TUV/ UL/ CE/ ROHS/ IEC/ CQC/ ISO/ SFEC/ CEC approval.



2. Materials:

 Use environmental friendly materials; avoid any risk in the whole life of our products. No raw material limitation.

1) TCO glass: Choose the best from NSG.

2) transparency:10%-60%.

3). Color: red, blue, yellow, green.

4) PVB: high strength after broken or equivalents

5) Connector: MC3 or MC4 equivalent



3. Technical advantages:

1) Advanced encapsulation process: amorphous silicon deposited by PECVD technology ensures a high resistance against UV, temperature and weather.

2) Excellent performance under weak light and high temperatures condition. Less sensitive to shading

3) 30% lighter than double-glass type

4) Good environment adaptability, less sensitive to installation angle, more suitable for vertical installation in BIPV

5) Enable coverage with fewer units, and less balance of system cost

6) Good looking, well match the buildings and facilities.

7). Low temperature coefficient



4. Warranty:

Product warranty: Free from defects in materials and workmanship for 5 years.

Power warranty:Maintain more than 90% of maximum power for 10 years.

Maintain more than 80% of maximum power for 25 years.



Product Parameters

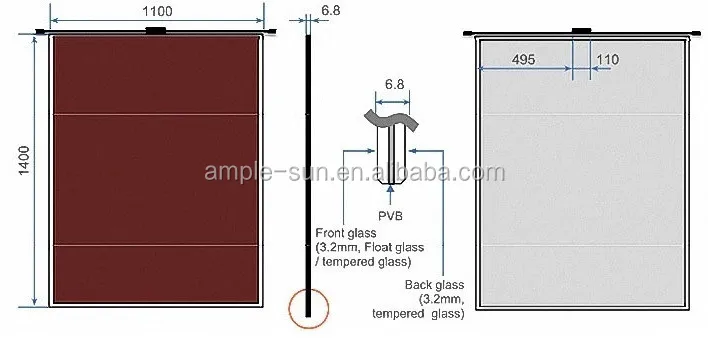

Configuration Drawing

double glass PV solar panel Drawing

Electrical Datas:

Test under STC(1000W/m2, AM1.5, 25℃)
Item
Transparency
0%
10%
20%
30%
40%
50%
60%
Pmax,W
110
100
90
78
67
53
42
Voc.V
100
100
100
100
99
99
99
Isc,A
1.79
1.61
1.43
1.25
1.07
0.90
0.71
Vpm,V
78
77
77
77
77
75
75
Ipm,A
1.41
1.27
1.13
0.99
0.87
0.71
0.56

Temperature Coefficients

Maximum Power[W]: -0.20%/℃
Maximum Power Voltage[V]: -0.32%/℃
Maximum Power Current[A]: +0.14%/℃
Open Circuit Voltage[V]: -0.33%/℃
Short Circuit Current[A]: +0.09%/℃

Installation Limits

Maximum System Voltage[V]: 1000
Operation Module Temperature: -40 to +85℃
Maximum Load: 2400N/m2



BIPV Product Details



Facilities



Projects Cases

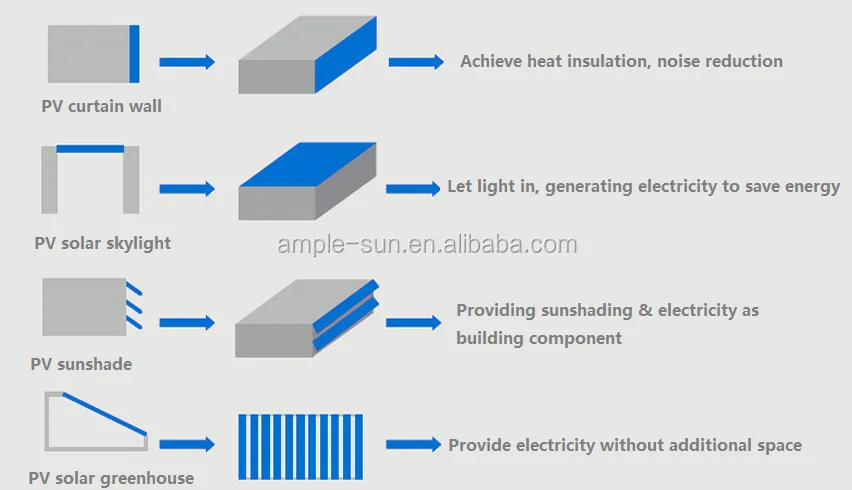

Application Fileds:

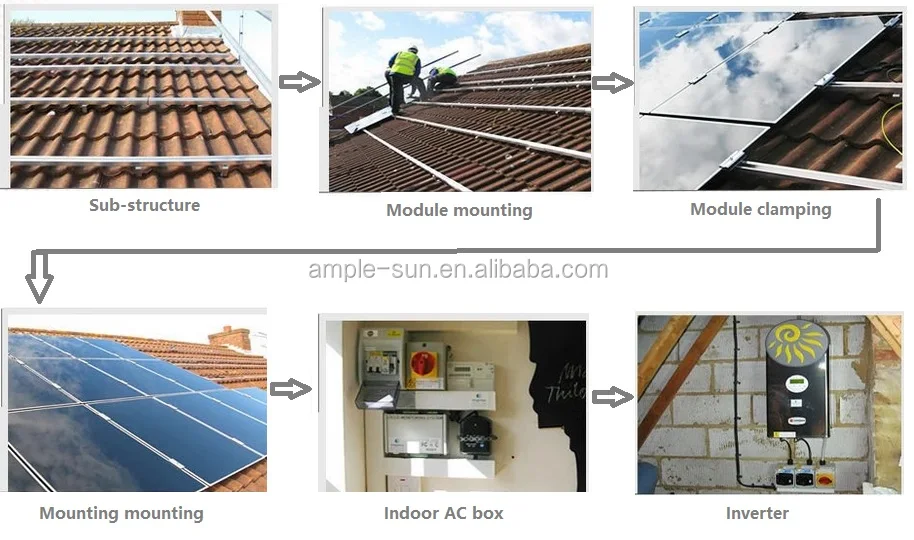

Installation Guide:

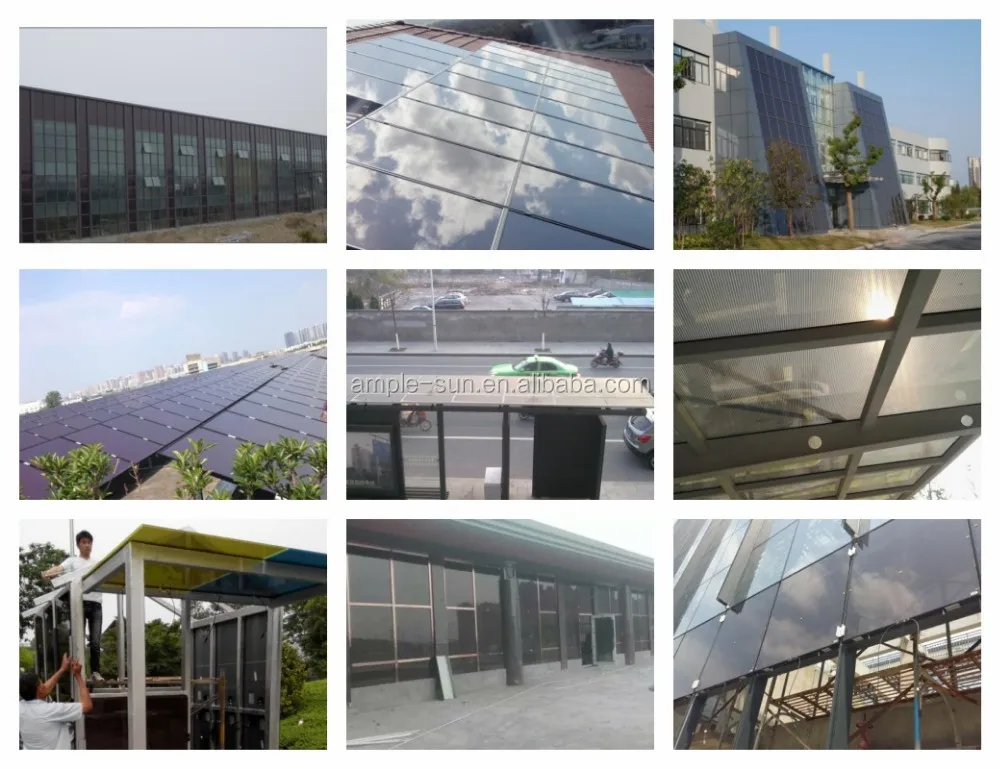

Project Cases:
