Transparent a-Si thin film photovoltaic solar glass for solar carport,Roof, curtain-walls, skylights, pergola, or facades

  • 10 - 999 Watts
    $90.00
  • >=1000 Watts
    $70.00
System Type:
On-Grid Solar System Off-Grid Solar System Hybrid Solar System
Solar Power (W):
110W
Lead Time:
Quantity(Watts) 1 - 10 11 - 1000 >1000
Est. Time(days) 7 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Watts)
Customized packaging (Min. Order: 1 Watts)

More

Graphic customization (Min. Order: 1 Watts) Less
Samples:
$3.00 /Watt | 1 Watt (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Amplesun
Model Number:
ASG110
Output Frequency:
50/60HZ
Application:
Commercial
Work Time (h):
8H
Controller Type:
MPPT
Material:
Amorphous Silicon
Size:
1400*1100mm
Number of Cells:
119
Max. Power:
110W
Max. Power voltage:
75V
Max power current:
1.33A
Open circult voltage:
101V
Short circult current:
1.65A
Weight:
25.3KG
Connector:
MC4 or MC4 equivalent
Specification:
Normal
Solar Panel Type:
Grade A Polycrystalline
Battery Type:
Lead Acid
Output Voltage (V):
77V
Load Power (W):
110W
Supply Ability
Supply Ability:
25 Milliwatt/Milliwatts per Year
Packaging & Delivery
Packaging Details
Carton Q'ty/20': 448pcs(44.8KWp);
Q'ty/40': 960pcs(96KWp)
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Port
Shanghai/Ningbo
Lead Time :
Quantity(Watts) 1 - 10 11 - 1000 >1000
Est. Time(days) 7 10 To be negotiated



Company Information

AmpleSun is major in the thin film solar industry, With start-of-art production lines and qualified raw materials, Amplesun provide not only standard thin film photovoltaic modules with high performance and top quality, but also customized products and services.



AmpleSun PV Solar module products types include

  • Framed single glass solar panel
  • Frameless and see through thin film solar module
  • Built-in insulation layer

  • PV-thermal-in-one module

  • Sealed hollow insulating modules

  • Large-area module(much bigger than 1.54m2)

  • Custom solar panel

Amplesun Solar PV module is widely applied to carport, greenhouse, skylight,floor,curtain-walls,pergola, commercial roof systems, residential roofs, BIPV facades and more. Amplesun clients can order their PV module products with the transparency,size,shape,background color, and even background patterns specified by clients themselves.



1. Certification:

 All products are strictly designed and manufactured according to IEC 61646, 61730 and UL 1703 standard in ISO 9001 certified factory, with TUV/ UL/ CE/ ROHS/ IEC/ CQC/ ISO/ SFEC/ CEC approval



2. Materials:

 Use environmental friendly materials; avoid any risk in the whole life of our products. No raw material limitation.

1) TCO glass: 3.2mm float glass from NSG.

2)PVB: high adesion and strengh to prevent UV and breakage cracking risk.

3)Back Glass: Tempered glass with customized thickness.

 4)Solar panel: amorphous silicon

5) Connector: MC4 or MC4 equivalent



3. Technical advantages:

1) Advanced encapsulation process: amorphous silicon deposited by PECVD technology ensures a high resistance against UV, temperature and weather.

2) Excellent performance under weak light and high temperatures condition. Less sensitive to shading

3) Good environment adaptability, less sensitive to installation angle, more suitable for vertical installation in BIPV

4) Enable coverage with fewer units, and less balance of system cost

5) Good looking, well match the buildings and facilities.

6). Low temperature coefficients.



Product Parameters

Configuration Drawing

double glass PV solar panel Drawing

Electrical Datas:

Test under STC(1000W/m2, AM1.5, 25℃)
Item
Transparency
0%
10%
20%
30%
40%
50%
60%
Pmax,W
110
100
90
78
67
53
42
Voc.V
100
100
100
100
99
99
99
Isc,A
1.79
1.61
1.43
1.25
1.07
0.90
0.71
Vpm,V
78
77
77
77
77
75
75
Ipm,A
1.41
1.27
1.13
0.99
0.87
0.71
0.56

Temperature Coefficients

Maximum Power[W]: -0.20%/℃
Maximum Power Voltage[V]: -0.32%/℃
Maximum Power Current[A]: +0.14%/℃
Open Circuit Voltage[V]: -0.33%/℃
Short Circuit Current[A]: +0.09%/℃

Installation Limits

Maximum System Voltage[V]: 1000
Operation Module Temperature: -40 to +85℃
Maximum Load: 2400N/m2

 4. Warranty:

Product warranty: Free from defects in materials and workmanship for 5 years.

Power warranty:Maintain more than 90% of maximum power for 10 years.

Maintain more than 80% of maximum power for 25 years.

Packaging & Shipping

Package: Carton
Q'ty/20': 448pcs(48KWp);
Q'ty/40': 960pcs(96KWp)
Pcs/ctn: 2pcs/ctn & 28pcs/ctn & 30pcs/ctn
Ctn size: 1.46m*1.13m*0.09m for 2pcs
1.46m*1.16m*1.12m for 28pcs
1.46m*1.11m*1.24m for 30pcs
Loading port: Shanghai

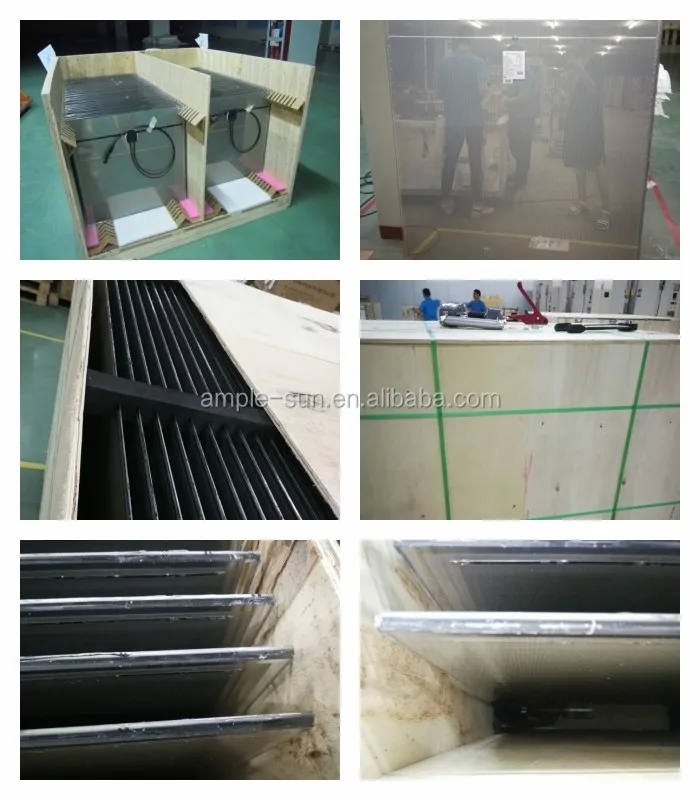

BIPV packing



Projects Cases

BIPV roof






 BIPV project cases.jg



Facilities

 Companyfacilities,jpg
